Is a Pallet Four-Way Shuttle System Right for Your Warehouse?

Introduction

Automated Storage And Retrieval Systems are developing toward higher density, digitalization, and intelligence. Traditional warehouse systems can no longer meet the growing demand for efficiency, and high-density storage has become an important direction in modern logistics.

Pallet four-way Shuttle Robots are now widely used across many industries. As a key device for high-density pallet storage, the pallet four-way Shuttle Robot has strong adaptability in different application scenarios.

This article analyzes its adaptability from the perspectives of pallet, rack, goods, building space, environment, expansion, and storage operation mode.

Pallet Adaptability

A pallet four-way shuttle robot has relatively low requirements for pallets. Unlike forklifts, which pick pallets through fork openings, the four-way shuttle lifts and carries goods from the bottom. Therefore, pallet fork openings mainly need to meet forklift or AGV handling requirements at inbound and outbound positions.

For the pallet bottom structure, the main requirement is that it should be flat and stable enough for safe lifting. Common pallet types such as three-runner pallets, grid-bottom pallets, and double-sided pallets can generally be used.

There is no strict restriction on pallet material, but the pallet must meet quality and load-bearing requirements. Since the shuttle travels underneath the pallet before lifting it, pallet deformation must be controlled. Generally, when a pallet is fully loaded on the rack, deformation should be no more than 13 mm.

For pallet size, standard shuttle models usually support pallet depths from 800 mm to 1,200 mm and pallet widths from 1,100 mm to 1,600 mm. Smaller or larger pallet sizes usually require customized design.

Rack Adaptability

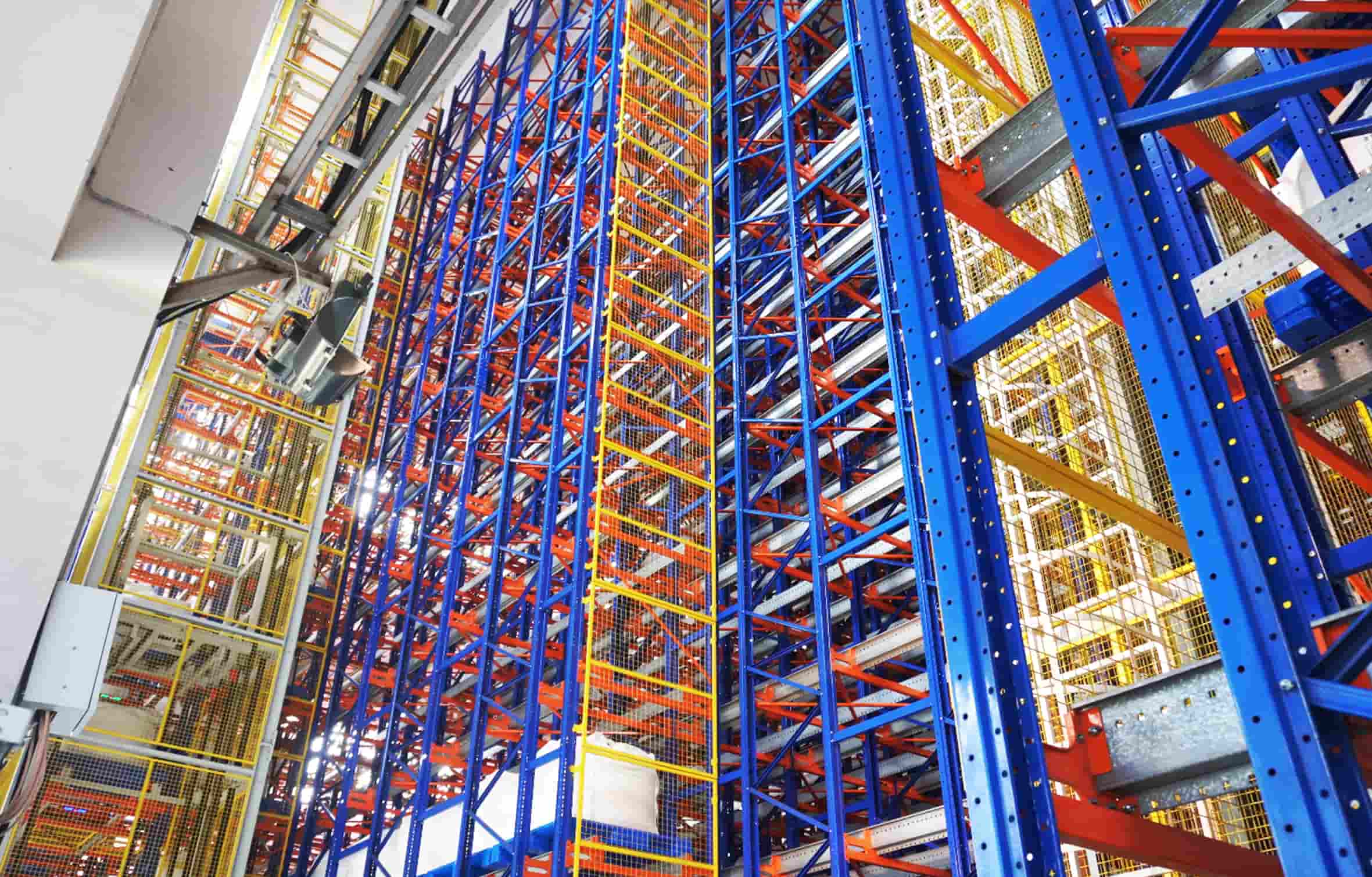

In a pallet four-way shuttle AS/RS, the rack system is essential. The shuttle depends on rails installed on the rack for traveling and handling operations.

Different manufacturers may have differences in shuttle size, structure, wheelbase, and height. These differences create specific requirements for rack rails. Therefore, the rack system and shuttle robot must be properly matched.

In practical design, both main aisle rails and sub-aisle rails must be considered to ensure stable shuttle movement, accurate positioning, and smooth pallet transfer.

Goods Adaptability

Because the pallet four-way shuttle robot has a compact and lightweight body, it travels and handles goods inside the rack system. Therefore, there are limits on pallet load weight.

For standard shuttle models, the typical load capacity is usually below 1.5 tons, which can meet most application needs. If higher load capacity is required, customized design will be needed and overall cost will increase.

A pallet four-way shuttle system is generally positioned as a high-density storage system. Its main advantage is flexibility. According to customer requirements, the number of main aisles can be adjusted to match different SKU structures.

In theory, the system can support many SKU scenarios. However, the more SKUs there are, the more main aisles are required. In general, one sub-aisle usually stores goods of the same SKU and same batch.

When more main aisles are added, rack cost increases. Compared with stacker crane AS/RS or other storage models, the four-way shuttle system may lose some cost-effectiveness in extremely high-SKU scenarios.

For warehouses with more SKUs, more main aisles can be added and sub-aisle depth can be reduced. For warehouses with fewer SKUs, the number of main aisles can be reduced and sub-aisle depth can be increased to improve storage density.

Environmental Adaptability

The internal environment of a pallet four-way shuttle AS/RS is complex. The shuttle travels, handles, stores, and retrieves goods inside the rack structure.

To operate safely and efficiently, the shuttle uses control systems, positioning systems, obstacle avoidance systems, and professional scheduling systems. These technologies allow stable operation in high-density storage environments and improve warehouse accuracy while reducing manual errors.

For external warehouse environments, the pallet four-way shuttle robot also has strong adaptability. By using low-temperature sensors, low-temperature batteries, and conformal coating for circuit boards, it can operate in cold storage environments from -25°C to 0°C. With explosion-proof components and motors, it can also be adapted for explosion-proof environments.

Expansion Adaptability

The pallet four-way shuttle robot has strong flexibility because it supports four-way movement and can change levels through vertical lifts.

Storage capacity can be expanded by adding rack areas from different directions. Inbound and outbound capacity can be improved by increasing the number of pallet four-way shuttle robots.

Compared with stacker crane solutions, pallet four-way shuttle systems decouple storage capacity from inbound and outbound frequency. This means the system can be configured according to actual requirements, helping reduce overdesign and lower initial investment.

After project completion, if business demand changes or production volume increases, the system can be expanded more flexibly by increasing storage capacity or improving throughput.

Adaptability of Storage Operation Modes

The pallet four-way shuttle robot supports high-density storage with flexible layout options. Its storage operation mode can be adjusted according to customer requirements.

Based on the layout and segmentation of main aisles, materials can be stored and managed according to batch-based first-in, first-out rules. The system can also support strict pallet-level FIFO management for each individual pallet.

This makes the system suitable for industries with batch management, production traceability, inventory rotation, and flexible outbound requirements.

Conclusion

The pallet four-way shuttle robot shows strong adaptability in pallet handling, rack design, goods storage, building layout, warehouse environment, expansion planning, and storage operation modes.

In actual project design, the final solution should be evaluated based on real customer requirements, including building conditions, material information, workflow, throughput, cost, and the adaptability of different logistics systems.

Only when system characteristics match actual operating needs can a pallet four-way shuttle system deliver higher storage density, better flexibility, improved efficiency, and greater long-term value.
