Four-Way Shuttle System for High-Density Chemical Warehousing
Abstract
Traditional chemical warehousing often faces low space utilization, high manual error rates, weak equipment coordination, and insufficient operation and maintenance support. These limitations make it difficult to meet the storage needs of chemical finished goods, which usually involve multiple specifications, heavy loads, large throughput, and high safety requirements.
This article uses a four-way Shuttle System as the core storage and handling equipment. Based on the practical requirements of chemical warehousing, it explains a full-process localized service model covering early-stage survey and planning, mid-stage system integration, and later-stage operation, maintenance, and optimization.
By combining hardware, software, customization, and service, and by using an intelligent warehousing project for finished magnesium sulfate products as an example, the article shows how the integrated model improves storage density, operating efficiency, safety control, and long-term system reliability.
Background and Project Logic
As fine chemical production expands, warehousing hubs are under pressure from limited industrial land, higher labor costs, and stricter compliance management. Traditional warehouses often use only 30% to 50% of available space. Manual handling and forklift operation also lead to lower efficiency and higher error rates.
Earlier fixed stacker crane automated warehouses can improve automation, but they may lack flexibility and involve higher retrofit costs. For chemical finished goods with multiple batches, heavy loads, and continuous storage requirements, a four-way Shuttle System provides a more adaptable high-density storage solution.
However, hardware alone is not enough. If site adaptation, O&M response, and long-term service are weak, the system may still face delays, interruptions, and frequent faults. Therefore, four-way shuttle equipment should be combined with full-lifecycle localized service to solve both implementation bottlenecks and daily operating pain points.
Core Challenges in Chemical Warehousing
Heavy-load chemical warehousing usually faces two major challenges.
The first challenge is the mismatch between space planning and operational efficiency. If storage locations are poorly planned, rack load distribution, shuttle efficiency, and overall warehouse safety may all be affected.
The second challenge is the separation of intelligent hardware and long-term service. Many projects focus on single equipment performance, but insufficient attention is paid to site adaptation, chemical compliance, fault response, and future optimization. This can limit the value of the system after implementation.
To solve these challenges, the project built a linked model between four-way shuttle technology and full-process localized service.
Technical Features of the Four-Way Shuttle System
The customized four-way shuttle used in this chemical project adopted a high-strength alloy frame and integrated seven functional modules. It was designed for chemical dust, heavy-load handling, and high-frequency operation.
Key parameters included positioning accuracy within +/-2 mm, a rated load of 1,050 kg, and a travel speed of 80 m/min. These specifications met the requirements for unmanned storage and handling of finished magnesium sulfate products.
The shuttle runs on cross rails installed in the rack structure and can move forward, backward, left, and right. Through intelligent direction-changing transfer plates, it can complete 90-degree direction changes without manual intervention. With dedicated vertical lifts, finished pallets can be transferred between storage levels.
WMS issues storage and handling tasks, while WCS converts these tasks into equipment instructions. Infrared barcode recognition and RFID sensing help synchronize batch information, storage location, and movement records in real time. This supports accurate storage, retrieval, dynamic allocation, and full-area traceability.
In this chemical project, four-way shuttles, vertical lifts, palletizing robots, and automatic loading equipment worked together to connect the packaging line, high-density storage area, and loading dock. The system created a closed-loop unmanned process from production completion to intelligent storage and compliant shipping.
Value for High-Density Chemical Warehousing
Compared with traditional warehouse models, the four-way Shuttle System provides several practical benefits. It can improve space utilization by 40% to 70%, increase operating efficiency by 2.5 to 5 times, support flexible capacity expansion, and reduce operation and maintenance costs.
These advantages make it suitable for heavy-load chemical finished goods storage, especially where land is limited, batch control is important, and high-throughput shipping is required.
Full-Lifecycle Service for Chemical Warehousing
Full-lifecycle localized service covers every project stage. It supports chemical compliance, Shuttle System maintenance, and continuous operation stability.
Inbound Docking Station
The inbound docking station was designed according to the rhythm of four packaging lines. A customized pre-sorting plan was adopted, and WMS was used to verify finished goods information. Abnormal handling stations and palletizing robot commissioning support were also added.
The measured inbound efficiency reached 33 pallets per hour, and the ledger verification rate reached 100%.

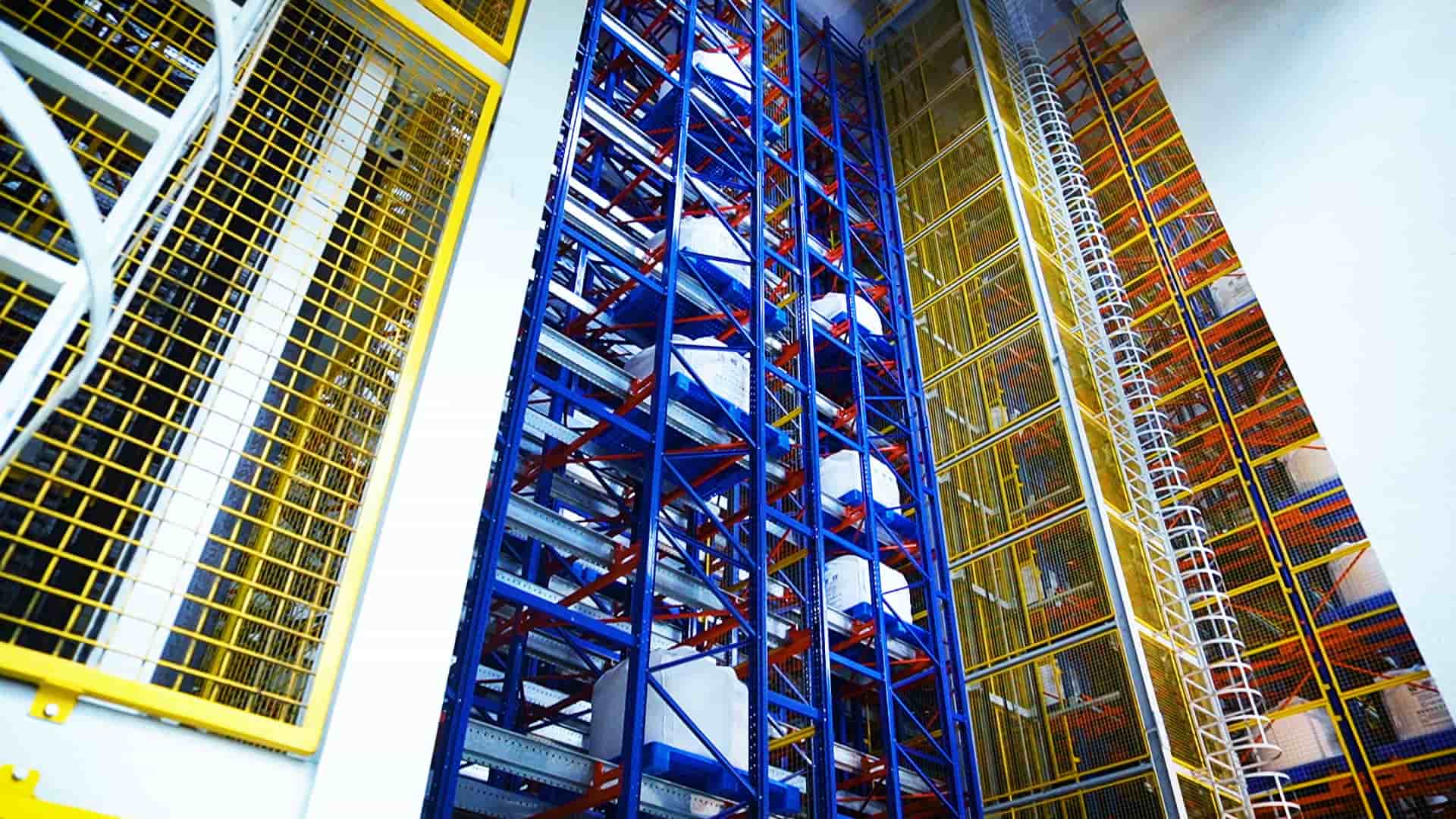

For the storage area, the system considered the characteristics of magnesium sulfate and used simulation-based analysis to develop a storage zoning strategy. Rack stress was checked, an empty pallet area was created, and safety parameters were monitored online. With 5,560 storage positions, space utilization increased to more than 85% without heavy-load storage safety risks or material loss.
Core High-Density Storage Area
The core storage area focused on safe load-bearing, dynamic allocation, and long-term traceability. Considering the heavy load, moisture sensitivity, and dust adhesion characteristics of magnesium sulfate, the project used rack structural mechanics simulation to develop a differentiated storage strategy.
Heavy bulk-bag finished products were assigned to lower and more stable locations, while lighter small-package products were arranged on higher levels. This helped balance rack load and improve storage safety.
The service design also included an empty pallet storage and allocation area, temperature and humidity monitoring, dust concentration monitoring, rack deformation monitoring, and closed-loop alarms linked with fire protection and explosion-proof systems.
Sorting Docking Station
The sorting area adopted a zone-based collaborative sorting model. For different packaging types, the project customized a dual-mode sorting solution and optimized the human-machine collaboration route.
After implementation, the sorting error rate was controlled within 0.1%, and sorting efficiency improved by 40%. This helped avoid wrong sorting, missed sorting, and batch mixing.
Compliant Loading Station
At the loading station, finished goods information was reviewed and connected with the ERP system. The project also optimized the off-peak operation plan of the vertical lifts.
Measured loading efficiency reached 60 pallets per hour for bulk-bag finished goods and 30 pallets per hour for bagged finished goods. Shipping records could be traced in real time, supporting chemical industry compliance requirements.
To further support safe operation, night-time off-peak maintenance was added. During the day, the system prioritized finished goods outbound and loading. At night, it handled inbound storage, cleaning, disinfection, and equipment maintenance. This improved equipment utilization and supported safer chemical production management.
Integration of Hardware, Software, and Service
The four-way shuttle cluster was connected with central control software through industrial communication protocols. Through hardware coordination, software control, and algorithm optimization, the project reduced equipment congestion and task backlog.
Measured data showed average effective utilization of 83.7% for four-way shuttles and 76.9% for vertical lifts. The system operated without major risks such as communication delays or data disconnection.
With the Shuttle System as the core, the project connected seven functional zones and adopted one-way logistics flow. Empty pallet allocation, redundant equipment backup, and dust prevention and disinfection control were added. As a result, full-chain operation time was reduced by 30%, with no major cross-flow conflicts or operation congestion.
Main Project Value
The integrated model delivered measurable value. Storage capacity increased by 3 to 5 times, floor area was reduced by 50%, operation time was reduced by 25%, order fulfillment cycle was shortened by 40%, labor cost was reduced by 40%, operation and maintenance cost was reduced by 30% to 50%, and error rate was controlled below 0.1%.
Conclusion
Customized four-way shuttle systems are well suited to chemical heavy-load, dusty, and high-safety operating environments. They provide an effective hardware foundation for new high-density warehouses and warehouse renovation projects.
When combined with full-process localized service, the system can close the gap between equipment delivery and long-term operation. The chemical warehousing case shows that hardware, software, process, and service integration can improve storage density, efficiency, cost control, and compliance at the same time.
For chemical enterprises planning warehouse renovation or expansion, the four-way shuttle system offers a practical and replicable path toward safer and more efficient intelligent warehousing.
FAQ
Why are four-way shuttle systems suitable for chemical warehousing?
They support four-direction movement, cross-level transfer through lifts, dense rack layouts, automated task execution, and flexible capacity expansion for heavy-load and batch-based chemical products.
How does the system support chemical warehouse traceability?
WMS, WCS, barcode recognition, RFID sensing, and ERP integration can record product batch, storage location, movement history, sorting status, and shipping information in real time.
Why is full-process service important in chemical warehouse projects?
Chemical warehousing requires site adaptation, safety zoning, compliance control, equipment maintenance, and long-term operation support. Full-process service helps reduce the gap between hardware delivery and stable daily operation.
