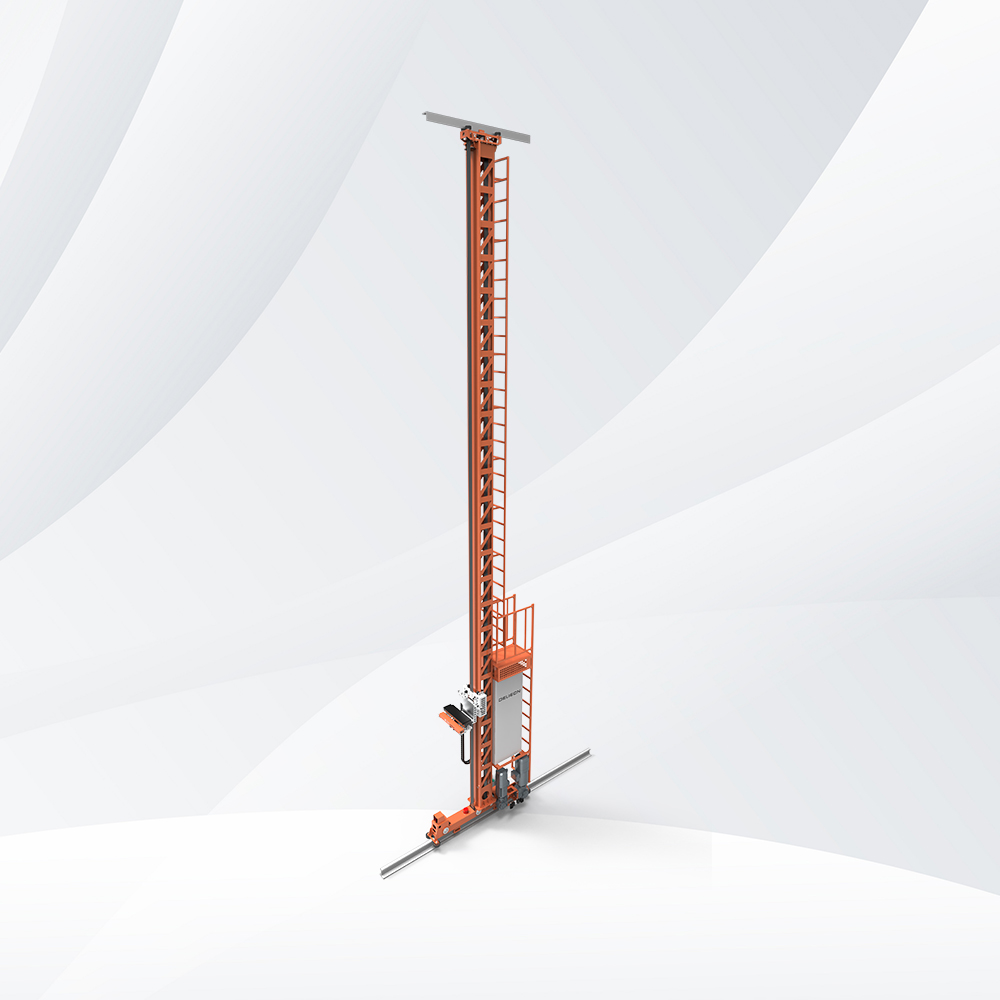

Miniload Crane
High-Performance Miniload Stacker Crane for Automated Storage and Retrieval
Space-Saving
With heights up to 24 m and single-/double-deep layouts, storage density can be increased by 3–5 times compared to conventional warehousing.
High Compatibility
Supports unit loads up to 300 kg and speeds from 180 m/min to 360 m/min, handling a wide range of load carriers including totes, cartons, and bins.
Strong Scalability
Modular structure with standardized interfaces enables easy maintenance, expansion, and upgrades, reducing future retrofit costs.
High Efficiency
DELIECN Miniload stacker cranes support inbound and outbound speeds of 180–360 m/min, increasing throughput per unit time and easily handling peak order demands.
Reliability
+
DELIECN Miniload stacker cranes innovatively integrate the core control system and wiring inside the mast, reducing the risk of collisions and snagging caused by exposed cables, and enhancing both equipment and personnel safety.
Durability
+
Using finite element analysis (FEA), components are scientifically optimized for lightweight construction and material strength, guaranteeing long-term stability in high-frequency warehouse environments.
High Safety
+
Built with a high-rigidity mast structure, equipped with safety clamps, buffers, and load shape detection to minimize equipment failures and operational risks.
High Performance
+
Two advanced lifting options are available:Timing Belt Drive: Ideal for high-throughput, high-frequency tote handling.Wire Rope Drive: Provides greater load capacity and long-term durability.
High Efficiency
+
With multi-position and multi-combination load handling devices, the crane can process multiple totes simultaneously, supporting FIFO, batch inbound/outbound operations.
Product Selection
