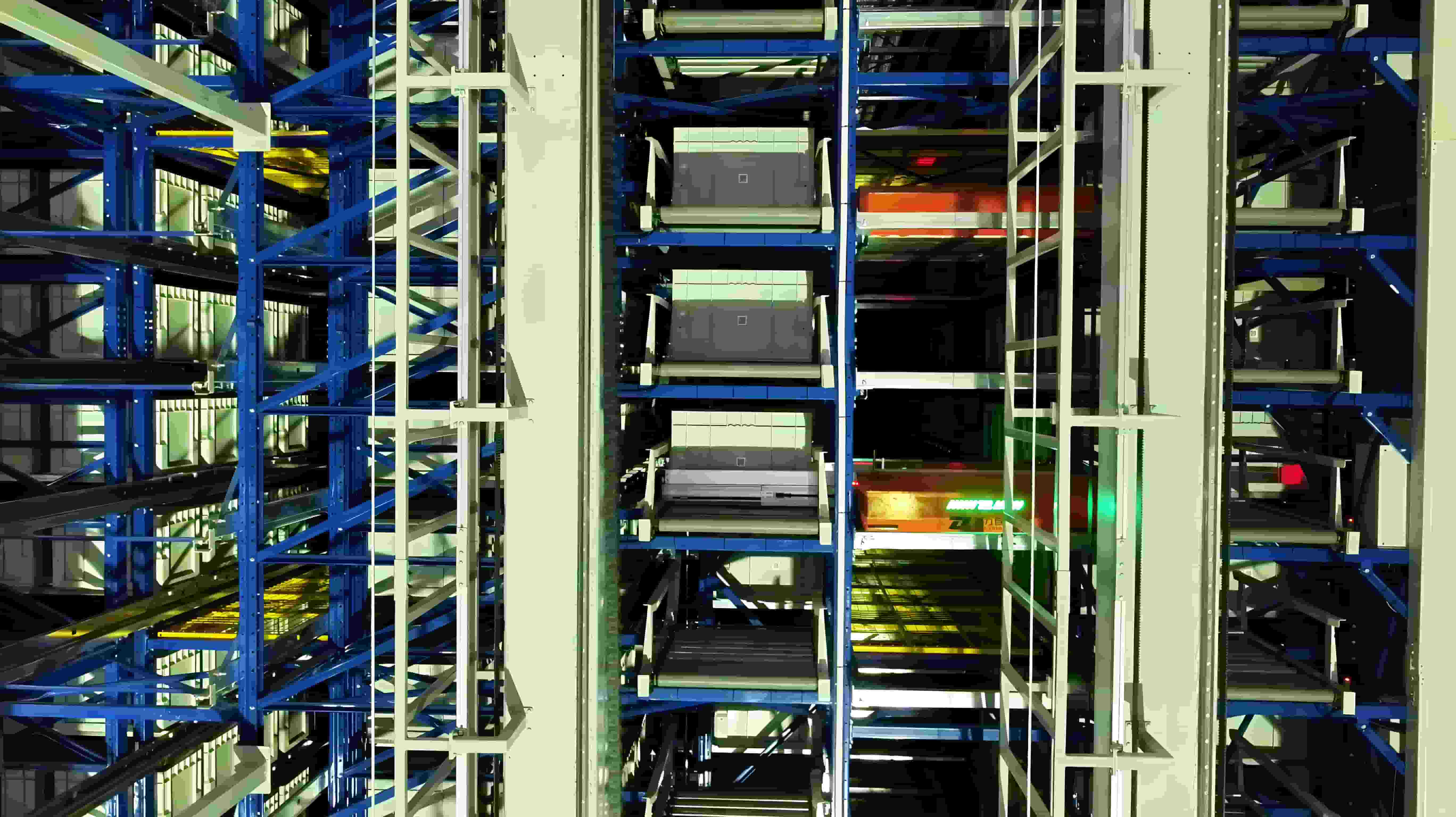

A Tote Shuttle Robot Racking System is an automated storage and retrieval solution designed for totes, cartons, and small-load units. It is widely used in warehouses with high SKU complexity, frequent order changes, and high requirements for picking accuracy and fulfillment speed.
Unlike traditional shelving or manual picking systems, a tote shuttle system uses shuttle robots to move totes within the racking structure. The system usually works together with lifters, conveyors, goods-to-person workstations, WMS, and WCS software. Through automated storage, retrieval, transfer, and task scheduling, it helps warehouses improve space utilization, reduce walking distance, and increase order processing efficiency.
For industries such as e-commerce, retail distribution, pharmaceuticals, spare parts, manufacturing, and third-party logistics, tote shuttle systems are especially suitable for operations that need fast tote turnover and accurate inventory control.
However, the performance of a tote shuttle system depends not only on the robot itself. A successful project requires careful planning of rack layout, shuttle quantity, tote specifications, workstation capacity, inbound and outbound flow, replenishment logic, and software scheduling strategy. If these elements are not properly matched, the system may face congestion, low workstation utilization, or limited throughput during peak periods.
This is why professional system design is essential. As an experienced AS/RS solution provider, DELIECN can design tote shuttle robot racking systems according to storage capacity, SKU structure, order profile, picking rhythm, building conditions, and future expansion needs.
Assessing Your Current Racking System Efficiency
Before introducing a tote shuttle robot system, enterprises should first evaluate the efficiency of their current storage and picking process. Many warehouses still rely on manual shelves, mezzanine platforms, wide aisles, or traditional racking layouts. These systems may appear flexible at the beginning, but they often become inefficient when SKU quantity, order frequency, and labor pressure continue to increase.
A practical assessment should focus on several key questions:
Are storage locations being fully used, or is too much space occupied by aisles and manual operating areas?
Are operators spending too much time walking, searching, and handling totes manually?
Can the current layout support peak order volumes without congestion?
Is inventory data accurate and updated in real time?
Are inbound, replenishment, picking, packing, and outbound processes connected smoothly?
Can the existing system support future business growth?
For tote shuttle projects, aisle width is not the only factor. The more important issue is whether the whole storage and retrieval flow is balanced. A system with high storage density but insufficient workstation capacity may still become inefficient. Similarly, too many shuttle robots without proper WCS scheduling can also cause traffic conflicts and waiting time inside the rack.
The flow of goods should also be reviewed carefully. In a well-designed tote shuttle system, totes move from storage locations to lifters, conveyors, and picking workstations in a controlled and efficient sequence. If the connection between equipment is not smooth, bottlenecks may occur at lifters, conveyor interfaces, buffer areas, or workstations.
Peak-hour performance is another important factor. Warehouses should not only plan for average daily volume, but also consider promotion periods, seasonal peaks, urgent orders, and SKU changes. The system should have enough flexibility to handle demand fluctuations without disrupting normal operations.
Regular system evaluation is also necessary after implementation. By analyzing operation data such as shuttle utilization, workstation efficiency, order processing time, task waiting time, inventory accuracy, and equipment alarm records, enterprises can continuously adjust storage strategies and improve system performance.
In short, optimizing a tote shuttle robot racking system is not simply about installing automation equipment. It is about building a coordinated storage and picking system where racking, shuttle robots, lifters, conveyors, workstations, WMS, and WCS work together efficiently. A well-planned system can help enterprises improve storage density, accelerate order fulfillment, reduce manual handling, and support long-term warehouse growth.
The first step is to define the storage unit. Tote size, load weight, product characteristics, and picking method all affect the rack design and shuttle configuration. For example, warehouses with small parts, pharmaceuticals, electronic components, or retail goods often require standardized totes to ensure stable storage, accurate handling, and smooth system operation.
Rack depth should also be planned according to product turnover. Fast-moving SKUs usually need shorter access paths and more efficient retrieval logic, while slow-moving SKUs can be stored in deeper or less frequently accessed areas. This helps balance storage density and picking efficiency.
Height planning is equally important. Higher racking can improve vertical space utilization, but it must be matched with lifter capacity, shuttle quantity, building height, fire protection requirements, maintenance access, and throughput targets. Simply increasing rack height does not always improve system performance. If lifters or workstations become bottlenecks, the overall efficiency may still be limited.
For DELIECN tote shuttle robot systems, the configuration can be customized based on project requirements. The system can work with tote lifters, conveyors, goods-to-person picking stations, and WMS/WCS software to support high-density storage, cross-level transfer, and efficient order fulfillment.
A professional configuration plan should answer these questions:
-
How many totes need to be stored?
-
What are the tote dimensions and maximum load?
-
How many inbound and outbound tasks are required per hour?
-
How many workstations are needed?
-
How many shuttle robots and lifters should be configured?
-
How will fast-moving and slow-moving SKUs be distributed?
-
Can the system support future SKU growth and order volume growth?
Only when these factors are considered together can the tote shuttle system achieve a good balance between storage density, throughput, investment cost, and long-term scalability.
Implementing Regular Maintenance Practices for Long-Term Stability
Regular maintenance is essential for keeping a tote shuttle robot racking system stable over the long term. Unlike manual storage systems, automated shuttle systems rely on coordinated operation among robots, rails, lifters, conveyors, sensors, electrical components, and software control. Any abnormal condition in one part of the system may affect overall performance.
A practical maintenance plan should include routine inspection, preventive maintenance, component replacement, software diagnosis, and operational data review.
-
For tote shuttle systems, small issues such as abnormal rail wear, poor sensor detection, unstable charging contact, or misalignment at conveyor interfaces can gradually lead to task delays or equipment alarms. Regular inspection helps identify these problems before they affect daily operations.
Maintenance should not only focus on hardware. Software data is also valuable. By reviewing robot running time, task waiting time, alarm frequency, charging cycles, workstation utilization, and lifter usage, warehouse managers can better understand system health and identify hidden bottlenecks.
DELIECN provides integrated AS/RS solutions with equipment, WMS/WCS software, installation, commissioning, and after-sales support. This helps customers maintain system stability throughout the full lifecycle of the project.
Using Software to Monitor System Performance
In a tote shuttle robot racking system, software is the core of equipment coordination and warehouse management. WMS manages inventory, storage locations, order tasks, batch information, and picking logic. WCS controls equipment scheduling, robot dispatching, route planning, lifter coordination, conveyor flow, and workstation task distribution.
Without strong software integration, even high-performance shuttle robots may not achieve the expected efficiency.
-
This data helps warehouse managers make timely adjustments. For example, if a lifter has long waiting times, the system may need route optimization or additional lift capacity. If a workstation is underutilized, order wave planning or tote sequencing may need adjustment. If some robots frequently wait for charging, the charging strategy or robot quantity may need to be reviewed.
However, software should not be treated as a replacement for operational management. Data must be interpreted together with real warehouse conditions. Regular review meetings between operations, maintenance, and system management teams can help turn system data into practical improvement actions.
For DELIECN tote shuttle robot systems, WMS/WCS integration supports coordinated equipment control, inventory visibility, and continuous system optimization.
Integrating Automation for a Smoother Workflow
A tote shuttle robot racking system should not be viewed as an isolated storage area. Its real value comes from connecting storage, picking, replenishment, packing, sorting, and outbound processes into a complete logistics flow.
In a typical automated tote storage system, the shuttle robot handles tote storage and retrieval inside the rack. Tote lifters complete level transfer. Conveyors connect the storage system with picking stations, packing areas, or production lines. Goods-to-person workstations allow operators to pick items without walking through aisles. WMS/WCS software coordinates tasks across the entire system.
This integration helps reduce manual walking, improve picking accuracy, and shorten order fulfillment time.
For high-SKU warehouses, the system can support:
-
Goods-to-person picking
-
Automatic replenishment
-
Order consolidation
-
Tote buffering
-
Batch picking
-
Multi-workstation operation
-
Cross-level tote transfer
-
Production line material supply
-
Real-time inventory tracking
The key is balance. If the shuttle system is fast but the picking workstation is limited, the workstation becomes the bottleneck. If enough workstations are available but tote sequencing is poor, operators may still wait for the right totes. If conveyors are not properly planned, congestion may occur between storage and picking areas.
Therefore, automation integration should be planned from the full-process perspective. The goal is not only to automate one storage area, but to build a smooth and measurable warehouse operation flow.
Training Staff for Better System Operation and Management
Even in a highly automated warehouse, people remain essential. Operators, supervisors, maintenance engineers, and system administrators all need to understand how the tote shuttle system works and how to respond when exceptions occur.
Training should cover both equipment operation and system logic. Staff should know how to use the workstation interface, handle abnormal totes, understand alarm messages, follow safety procedures, and communicate with maintenance teams when needed.
A complete training program should include:
-
Basic system workflow
-
Shuttle robot and lifter operation logic
-
Goods-to-person workstation operation
-
WMS/WCS interface usage
-
Alarm handling process
-
Emergency stop and safety rules
-
Daily inspection procedures
-
Maintenance reporting process
-
Inventory exception handling
-
Peak-period operation strategy
Hands-on training is especially important. Operators should practice real scenarios such as inbound storage, outbound picking, tote return, replenishment, equipment alarm handling, and manual intervention under safe conditions.
Training should also continue after go-live. As order profiles, SKU structures, and operational strategies change, staff need updated knowledge to keep the system running efficiently.
For warehouse managers, feedback from frontline operators is valuable. Operators can often identify practical problems such as workstation waiting time, tote sequencing issues, inconvenient interface steps, or recurring abnormal situations. This feedback can support continuous system improvement.
Tote shuttle robot systems are especially suitable for compact item storage. Compared with traditional shelving or manual picking areas, they can make better use of vertical space and reduce the need for wide walking aisles. This makes them valuable for warehouses with limited floor area, high SKU volume, and fast order turnover.

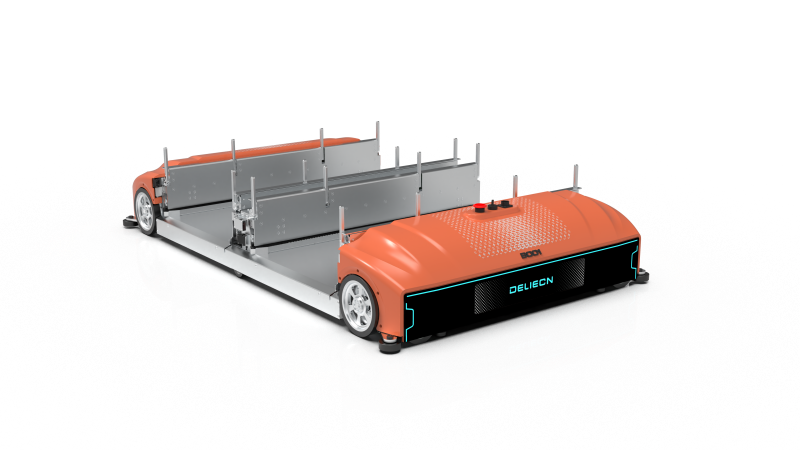

DELIECN Tote Shuttle Robots are designed for high-density tote storage and efficient goods-to-person picking. The system can be integrated with tote lifters, conveyors, workstations, WMS, and WCS to support automated storage, retrieval, transfer, picking, and order consolidation.

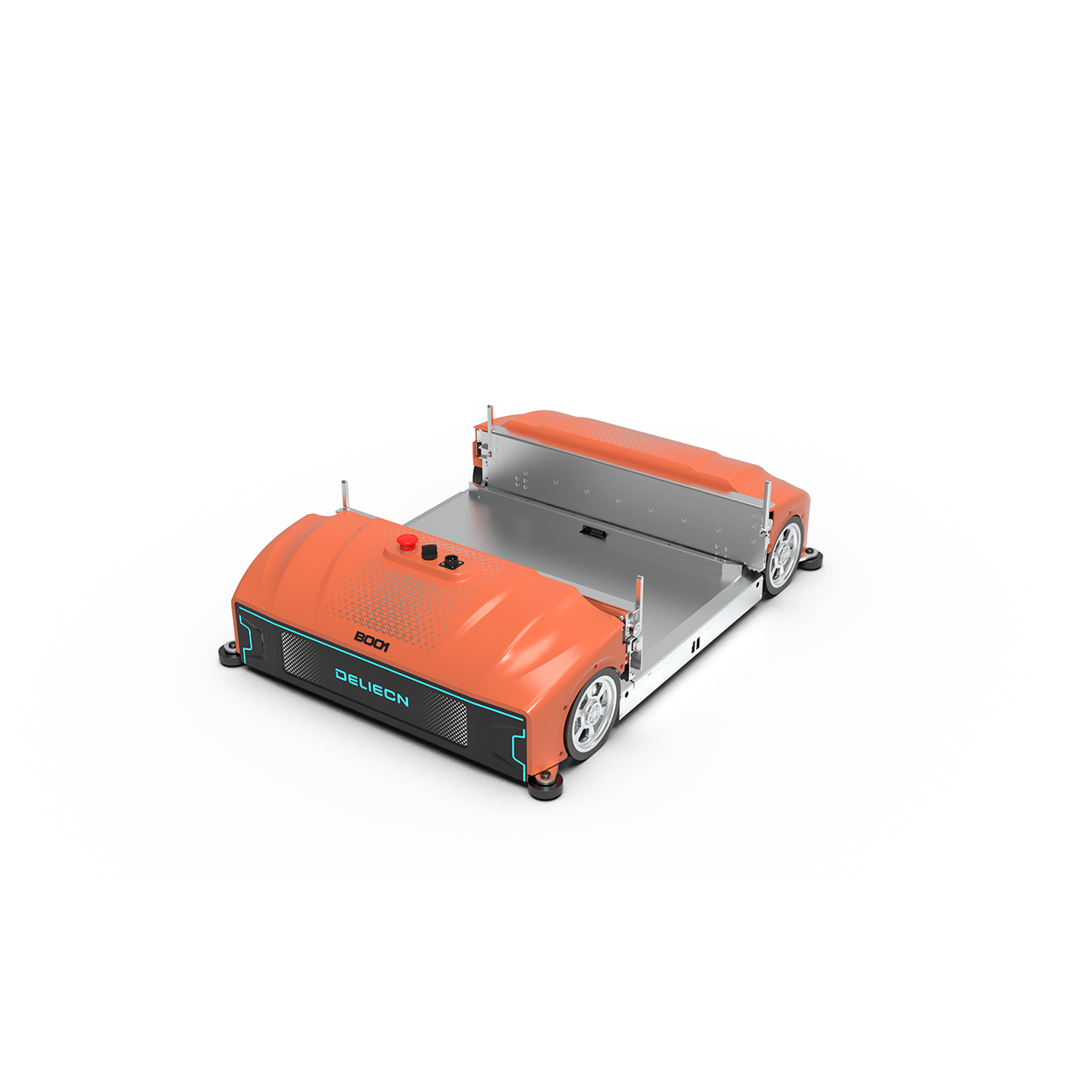

The DELIECN tote four-way shuttle robot supports four-way movement within the racking system and can work across aisles and levels through coordinated lifter operation. With high-precision positioning, flexible tote handling, and multi-vehicle scheduling, it is suitable for warehouses that require fast response and accurate small-item handling.
Typical application scenarios include:
-
E-commerce order fulfillment
-
Retail distribution
-
Pharmaceutical logistics
-
Spare parts warehouses
-
Electronics and precision manufacturing
-
Cold chain small-item storage
-
Production line material buffering
-
Third-party logistics centers
For companies handling many SKUs and frequent small orders, the main advantage of a tote shuttle system is not only higher storage density. More importantly, it changes the picking model from “people walking to goods” to “goods moving to people.” This reduces walking time, improves picking rhythm, and helps warehouses respond faster to order fluctuations.
A well-planned DELIECN tote shuttle robot racking system can help enterprises build a more compact, efficient, and scalable warehouse operation. By combining robots, racks, lifters, conveyors, workstations, and intelligent software, the system supports long-term improvement in space utilization, order fulfillment efficiency, inventory accuracy, and warehouse management capability.
Conclusion
Optimizing a Tote Shuttle Robot Racking System is not simply about installing automated equipment. It requires a full-system approach that combines proper layout planning, suitable rack configuration, stable equipment performance, intelligent software scheduling, and effective operational management.
Before implementation, enterprises should carefully assess their current storage efficiency, SKU structure, tote specifications, order profile, and peak-period throughput requirements. Selecting the right system size, rack depth, shuttle quantity, lifter capacity, workstation layout, and WMS/WCS configuration is essential for achieving a balanced and efficient operation.
After the system is put into use, regular maintenance and performance monitoring are equally important. By reviewing equipment status, task execution data, workstation efficiency, alarm records, and inventory accuracy, warehouse managers can identify potential bottlenecks and continuously improve system performance.
Staff training also plays a key role. Even in an automated warehouse, operators and maintenance teams need to understand how the system works, how to handle exceptions, and how to use software tools effectively.
For warehouses facing growing SKU volumes, faster order cycles, and limited storage space, a well-designed tote shuttle robot racking system can help improve storage density, accelerate order fulfillment, reduce manual handling, and enhance inventory accuracy. With integrated robots, racking, lifters, conveyors, workstations, WMS, and WCS, DELIECN provides customized tote shuttle AS/RS solutions to support long-term warehouse efficiency and business growth.
