Choosing the right 4 Way Shuttleis not only about selecting a robot. It is about designing a complete Automated Storage And Retrieval System that matches your warehouse space, pallet specifications, throughput requirements, operating environment, and long-term business growth.
For manufacturing plants, cold storage warehouses, distribution centers, and high-density storage facilities, a 4 Way Shuttle System can greatly improve storage density, reduce manual forklift handling, and increase inbound and outbound efficiency. However, different warehouses have different needs. The best solution should be selected based on real operational data, not only equipment parameters.
This guide explains the key factors to consider when choosing the best 4 Way Shuttle for your warehouse.
Understanding the Basics of 4 Way Shuttles

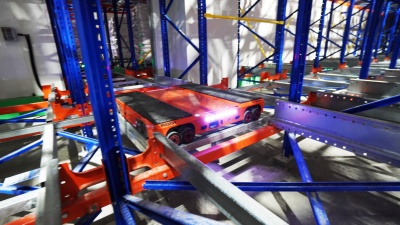

A 4 Way Shuttle is an automated material handling robot that can move in four directions: forward, backward, left, and right. It travels on rails inside the racking system and transports pallets or totes between storage locations, lifters, conveyors, and inbound or outbound stations.
Compared with traditional pallet racking or two-way shuttle systems, a 4 Way Shuttle offers stronger flexibility because it can change aisles and operate across multiple lanes. When combined with lifters, conveyors, WMS, and WCS, it forms a high-density automated storage system.
A complete 4 Way Shuttle system usually includes:
- 4 Way Shuttle robots
- Racking system
- Pallet or tote lifters
- Inbound and outbound conveyors
- Charging stations
- WMS/WCS software
-
For pallet storage, the system is often called a Pallet Four Way Shuttle System. For small parts and tote storage, it may be configured as a Tote Four Way Shuttle System.
Key Features to Consider When Selecting a Shuttle
When comparing different 4 Way Shuttle solutions, customers should pay attention to both the robot performance and the complete system design.
Important technical features include:
- Load capacity
- Travelling speed
- Positioning accuracy
- Battery endurance
- Charging method
- Operating temperature range
- Safety protection
- Communication stability
- Compatibility with pallets or totes
- Maintenance convenience
- WMS/WCS integration capability
For example, a pallet shuttle used in a cold storage warehouse should be designed for low-temperature operation. A shuttle used in a chemical or special industrial environment may require additional safety protection. A high-throughput warehouse may need more robots, faster lifters, and better task scheduling.
The right shuttle should match the actual operating conditions, not just look good on a specification sheet.
Analyzing Your Specific Transport Needs and Preferences
Before choosing a 4 Way Shuttle, it is important to define your warehouse operation requirements clearly.
You should evaluate:
- What type of goods need to be stored?
- Are the goods stored on pallets or in totes?
- What are the pallet or tote dimensions?
- What is the maximum load weight?
- How many storage locations are required?
- What is the daily inbound and outbound volume?
- What is the peak-hour throughput requirement?
- Is the warehouse used for raw materials, finished goods, spare parts, or cold chain products?
- Does the system need to connect with production lines, conveyors, AGVs, AMRs, or sorting areas?
A warehouse with high storage density but low outbound frequency may need a different solution from a warehouse with frequent order picking and fast replenishment. This is why project planning should start from material flow analysis, not only from equipment selection.
Evaluating the Quality and Durability of Different Shuttles
A 4 Way Shuttle system usually runs continuously for many years. Equipment quality directly affects system uptime, maintenance cost, and operational stability.
When evaluating shuttle quality, focus on the following areas:
Structural Design
The robot body should be strong enough to handle long-term operation under load. For pallet shuttle systems, structural rigidity and load distribution are especially important.
Drive and Lifting Mechanism
The drive system determines movement stability, acceleration, braking performance, and positioning accuracy. A reliable lifting mechanism ensures safe pallet or tote transfer during every operation.
Battery and Power Management
Battery endurance and charging efficiency influence system availability. A professional system should support efficient charging strategies based on task demand and robot quantity.
Control and Communication
Stable communication between the shuttle, WCS, lifters, conveyors, and safety devices is essential. Poor communication can lead to traffic congestion, task delays, or system interruptions.
Maintenance Design
Easy maintenance helps reduce downtime. Modular components, accessible inspection points, and clear diagnostic functions make the system more user-friendly for long-term operation.
Choosing a low-cost shuttle with weak durability may reduce initial investment, but it can increase future maintenance cost and operational risk.
Comparing Prices and Budgeting for Your 4 Way Shuttle
The cost of a 4 Way Shuttle system includes much more than the robot itself. A complete project budget should consider the full system.
Main cost items include:
- Shuttle robots
- Racking system
- Lifters
- Conveyors
- Charging stations
- Electrical control system
- WMS/WCS software
- Installation and commissioning
- Training and after-sales service
- Spare parts and maintenance
A cheaper robot does not always mean a cheaper project. If the system layout is not optimized, or if software scheduling is weak, the warehouse may need more equipment to achieve the same throughput.
A better approach is to compare total lifecycle cost, including purchase cost, energy consumption, maintenance cost, spare parts cost, downtime risk, and future expansion cost.
Researching Available Brands and Their Reputations
When selecting a 4 Way Shuttle supplier, brand reputation and project experience are very important. A shuttle system is not a standard machine that can work independently. It requires strong integration between mechanical equipment, software, racking, conveyors,lifters and so on.
A reliable supplier should have:
- In-house R&D capability
- Manufacturing capability
- Real project experience
- WMS/WCS software capability
- After-sales support and spare parts service
- Experience in your industry or application scenario
="1">
DELIECN provides automated warehouse solutions covering planning, core equipment R&D, manufacturing, installation, commissioning, acceptance, and after-sales service. For customers, this full-process capability helps improve project delivery quality and reduce coordination risk.
Reading Customer Reviews for Informed Decision-Making
Before making a decision, customer cases and project references are very valuable. They show how the supplier performs in real warehouse environments.
When reviewing customer cases, look beyond simple promotional claims. Focus on practical project information such as:
- Storage capacity improvement
- Inbound and outbound efficiency
- System stability
- Labor reduction
- Software integration
- Project delivery ability
- After-sales response
- Long-term operating feedback
A good supplier should be able to explain how the system was designed, what problems it solved, and what operational results were achieved.
Emerging Trends in Automated Storage Solutions: The Role of Pallet Shuttle Robots in Optimizing Warehouse Efficiency and Productivity
The role of pallet shuttle robots is becoming more important in modern warehouse automation. As companies face rising labor costs, limited warehouse space, and increasing order complexity, 4 Way Shuttle systems are widely used to improve warehouse efficiency and productivity.
Several trends are shaping the market:
Higher Storage Density
More companies are using 4 Way Shuttle systems to increase storage capacity without expanding warehouse buildings.
Multi-Robot Collaboration
Multiple shuttle robots can work together under WCS scheduling to improve throughput and flexibility.
Smarter WMS/WCS Integration
Modern systems rely on software to optimize storage allocation, task dispatching, inventory tracking, and equipment scheduling.
Cold Storage Automation
In low-temperature warehouses, shuttle automation reduces manual work in harsh environments and improves storage efficiency.
Modular Expansion
Many companies prefer systems that can start with a reasonable scale and expand later by adding robots, lifters, conveyors, or storage areas.
Integration with AGV/AMR and Production Lines
4 Way Shuttle systems are increasingly connected with AGVs, AMRs, conveyors, palletizers, and production lines to build a more complete intralogistics system.
FAQS
: A 4 Way Shuttle is an automated robot that can move in four directions within a racking system. It is used to transport pallets or totes in high-density automated storage systems.
A 2 Way Shuttle usually moves back and forth within one lane, while a 4 Way Shuttle can move forward, backward, left, and right. This allows it to change lanes and serve multiple storage aisles more flexibly.
Yes. A cold storage 4 Way Shuttle can be designed for low-temperature environments. The robot, battery, sensors, and electrical components must be suitable for cold chain operation.
The required number depends on storage capacity, inbound and outbound throughput, warehouse layout, lift quantity, conveyor design, and peak-hour operation demand.
Yes. A professional 4 Way Shuttle system should integrate with WMS and WCS to manage inventory, assign storage locations, dispatch tasks, control equipment, and monitor system operation.
For warehouses that need higher storage density, automated handling, and reduced forklift operation, a 4 Way Shuttle system can provide significant advantages. However, the final choice should depend on storage volume, throughput, budget, and business requirements.
Conclusion
Choosing the best 4 Way Shuttle requires a complete evaluation of warehouse space, goods type, load weight, storage capacity, throughput, operating environment, software integration, budget, and supplier capability.
A good 4 Way Shuttle system should not only store more goods in less space. It should also improve material flow, reduce manual handling, support long-term stable operation, and adapt to future business growth.
For companies planning to upgrade warehouse automation, DELIECN can provide customized 4 Way Shuttle solutions based on actual project requirements, helping customers build a more efficient, flexible, and high-density automated storage system.
